BMS解决方案
- 2023-03-07 13:22:27
- shhuiqin
- 1675
- 最后编辑：shhuiqin 于 2023-03-07 14:00:38
主动均衡，延长电池使用寿命

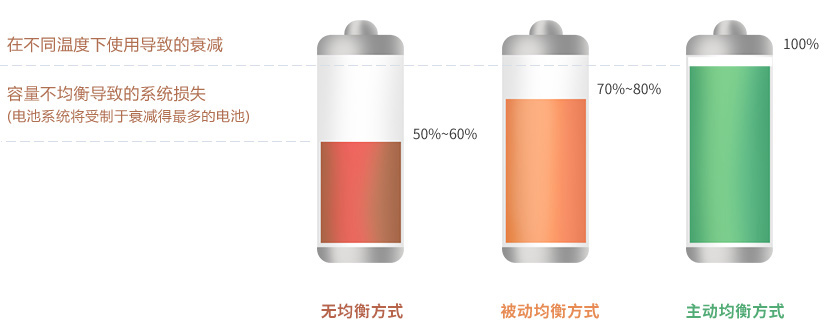

金升阳BMS方案采用主动双向均衡方式，可大大延缓电池系统可用容量的减少速度，延长其使用寿命。 电池系统在不同温度下使用会产生正常衰减。当电池容量不均衡时，电池系统将受制于衰减得最多的电池，产生额外的系统损失。 不同均衡方式下电池系统可以使用的容量对比如下：
方案成熟，无需额外独立设计

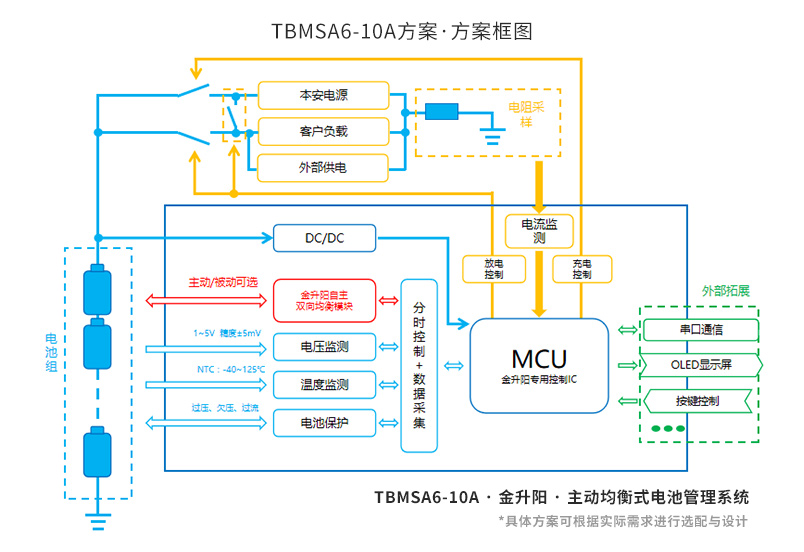

金升阳现有解决方案TBMSA6-10A是一款专门针对煤矿行业的电池管理系统。其完善的硬件保护、温度检测、 双向充放电电流限制、电池寿命管理等功能充分保证了矿用备份电池系统正常安全的运行。
设计灵活，根据应用需求定制

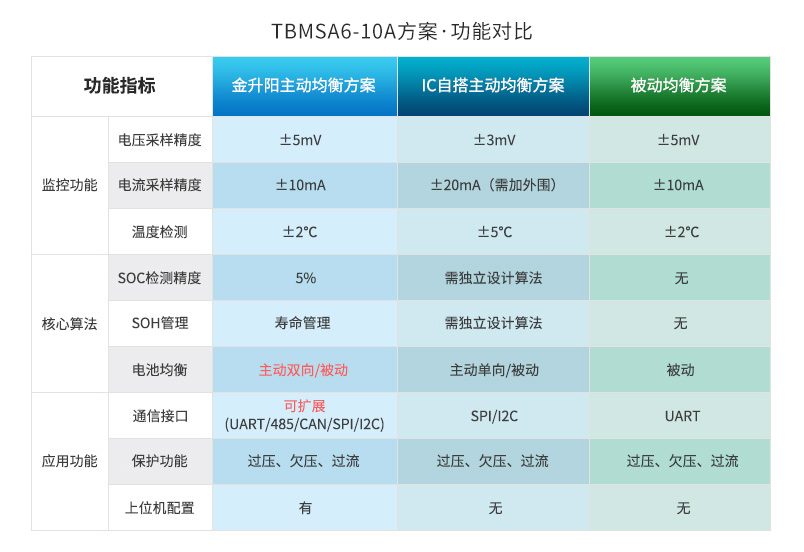

BMS解决方案
● 小体积：目前整板体积为91.00*71.0*15.8mm
● 低成本主动均衡：成本相当条件下直接实现主动均衡
● 元器件100%国产化，不受贸易风险影响
● 关键软件算法与功能自主开发，无需额外配置
